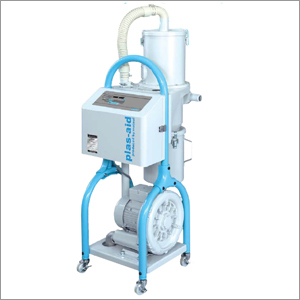

Vacuum Type Conveyor Loader

Vacuum Type Conveyor Loader
Vacuum Type Conveyor Loader
Product Code : 07
Product Description
Owing to the diligent efforts of our employees, we are able to offer Vacuum Type Conveyor Loader. It is used for automatically feeding different types of raw materials. We offer this machine to our clients in different specifications with highly convenient operations. With the help of our well-trained quality controllers, offered Vacuum Type Conveyor Loader is stringently checked on different parameters in order to ensure that highly qualitative products are delivered at our clients' end.

Summary:
  • JL4 is a vacuum type loader that feeds material automatically.
  • Adequate collection units can be chosen and used according it will be conveyed to.
  • In addition, a JL4 can support up to 6 different ends of the conveyor belt.
Features:
Space-saving design
  • Maximise the use of limited space in factories.
  • Compact, streamlined and highly efficient.
Worry no more about clotting
  • There is no need to worry about the clotting of the filter,as a lamp will be lilted to inform you of the need to clean the filter.(Under options, one can either choose the alarm buzzer or warning lamp)
Improved Dust box function
  • Capacity of dust box has been increased by the usage of a larger dust box. (VC Type)
  • Removal of dust made easier by the simple action of removing the cap. (V Type)
  • These reduce the need for maintenance and improve productivity.
Quiet Operation
  • By using a low-noise blower, unpleasant metallic and conveyor noises are reduced to a minimum.(Noise level less than 80db.)
Dust-collection cyclone feature
  • The cyclone separator is capable of collecting fine dust and hence, reduces the need for cleaning.
  • This enables stable conveying over extended periods of time as clogging of filter is eliminated and quality is maintained.
Standard Specifications
Model
Unit
JL4-4V
JL4-4VC JL4-5V JL4-5VC JL4-6V
JL4-6VC
JL4-7V JL4-7VC
Max.Air Flow Rate
50/60Hz
M³/min
2.4/2.8
2.4/2.8
3.5/3.8
5.1/6.1
Max.Output
50/60Hz
kW
0.9/1.15
1.1/1.5
2.2/2.55
4.0/4.6
Standard
Accessories
Conveying Hose

Ø38/5m
Ø38x10m Ø50x10m Ø65x10m
Vacuum Hose

Ø38x5m Ø38x5m Ø65x5m Ø65x5m
